Specifications
1.Style:Extension Wire
2.Thermocouple copper wire
Thermocouple copper wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.
Thermocouple variety and index
Thermocouple Variety and Index |
Variety |
Type |
Measurement Range(°C) |
NiCr-NiSi |
K |
-200-1300 |
NiCr-CuNi |
E |
-200-900 |
Fe-CuNi |
J |
-40-750 |
Cu-CuNi |
T |
-200-350 |
NiCrSi-NiSi |
N |
-200-1300 |
NiCr-AuFe0.07 |
NiCr-AuFe0.07 |
-270-0 |
Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+-0.25
Color code & initial calibration tolerances for thermocouple wire:
| Thermocouple Type | ANSI Color Code | Initial Calibration Tolerances |
| Wire Alloys | Calibration | +/-
Conductor | Jacket | Temperature Range | Standard
Limits | Special
Limits |
Iron(+) vs.
Constantan(-) | J | White/Red | Brown | 0°C to +285°C
285°C to +750°C | ±2.2°C
± .75% | ±1.1°C
± .4% |
CHROMEL(+) vs.
ALUMEL(-) | K | Yellow/Red | Brown | -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C | ± 2%
±2.2°C
±2.2°C
± .75% | ±1.1°C
± .4% |
Copper(+) vs.
Constantan(-) | T | Blue/Red | Brown | -200°C to -65°C
-65°C to +130°C
130°C to +350°C | ± 1.5%
±1°C
± .75% | ± .8%
± .5°C
± .4% |
CHROMEL(+) vs.
Constantan(-) | E | Purple/Red | Brown | -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C | ± 1%
±1.7°C
±1.7°C
± .5% | ±1°C
±1°C
± .4%
± .4% |

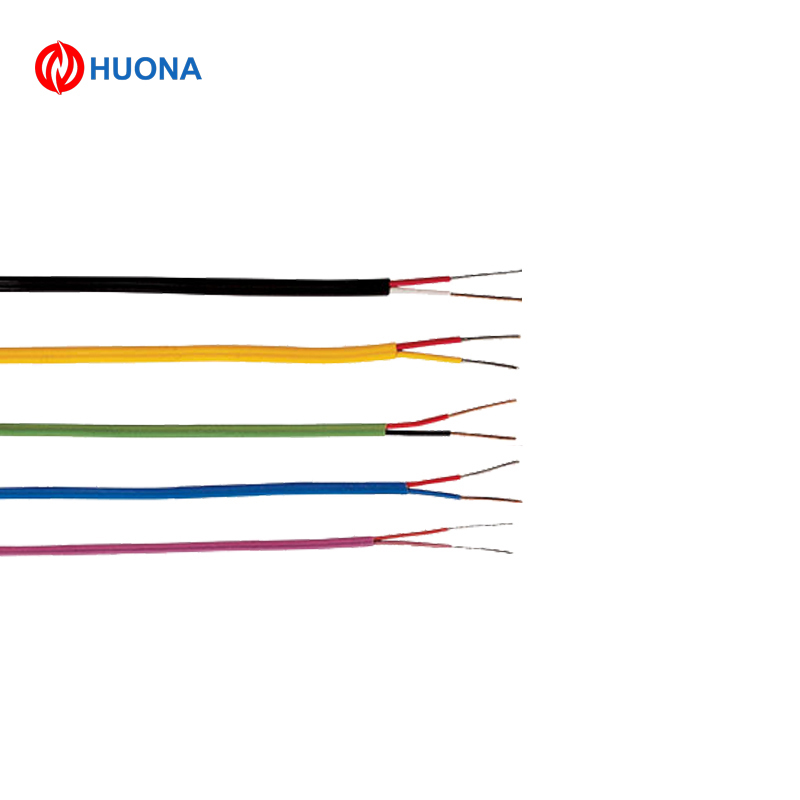

Color Code & Initial Calibration Tolerance for Extension Wire:
| Extension type | ANSI Color Code | Initial Calibration Tolerances |
| Wire Alloys | Calibration | +/-
Conductor | Jacket | Temperature Range | Standard
Limits | Special
Limits |
| Iron (+) vs. Constantan(-) | JX | White/Red | Black | 0°C to +200°C | ±2.2°C | ±1.1°C |
| CHROMEL (+) vs. ALUMEL (-) | KX | Yellow/Red | Yellow | 0°C to +200°C | ±2.2°C | ±1.1°C |
| Copper(+) vs. Constantan(-) | TX | Blue/Red | Blue | -60°C to +100°C | ±1.1°C | ± .5°C |
| CHROMEL(+) vs. Constantan(-) | EX | Purple/Red | Purple | 0°C to +200°C | ±1.7°C | ±1.1°C |
PVC-PVC Physical Properties:
| Characteristics | Insulation | Jacket |
| Abrasion Resistance | Good | Good |
| Cut Through Resistance | Good | Good |
| Moisture Resistance | Excellent | Excellent |
| Solder Iron Resistance | Poor | Poor |
| Service Temperature | 105ºC continuous
150ºC single | 105ºC continuous
150ºC single |
| Flame Test | Self-extinguishing | Self-extinguishing |
Company profile
Huona (Shanghai) New Material Co., Ltd. Was established in 2008, currently have three
divisions: Magnesium Division, Thermal Spray Division and Functional Material Division.
Magnesium Division produces magnesium metal products. Various models of high-quality
magnesium alloy plate, magnesium rods, high-purity magnesium, magnesium plate,
magnesium die casting, magnesium extrusion profiles and other metal magnesium and deep
processing products.
Thermal spray wire Division offers a wide variety of pure metal and metal alloy wires, including
nickel-, iron-, aluminum-, and zinc-based wires for thermal spray projects.
Fuctional Material Division supply electronic packaging COMPONENTS(GTMS, CTMS), soft
magnetic alloys and bimetal strip.
Our company is certified by ISO9001 quality system and ISO14001 environmental protection
system.

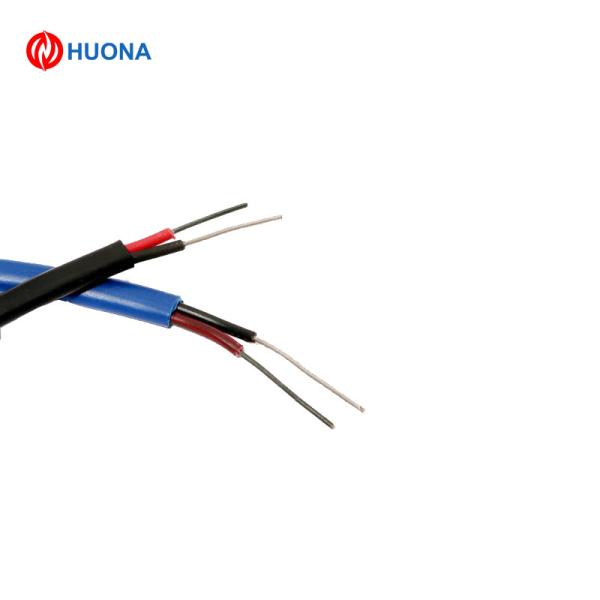

![Durable Flexible Thermocouple Cable With PTFE Insulation Material]()
