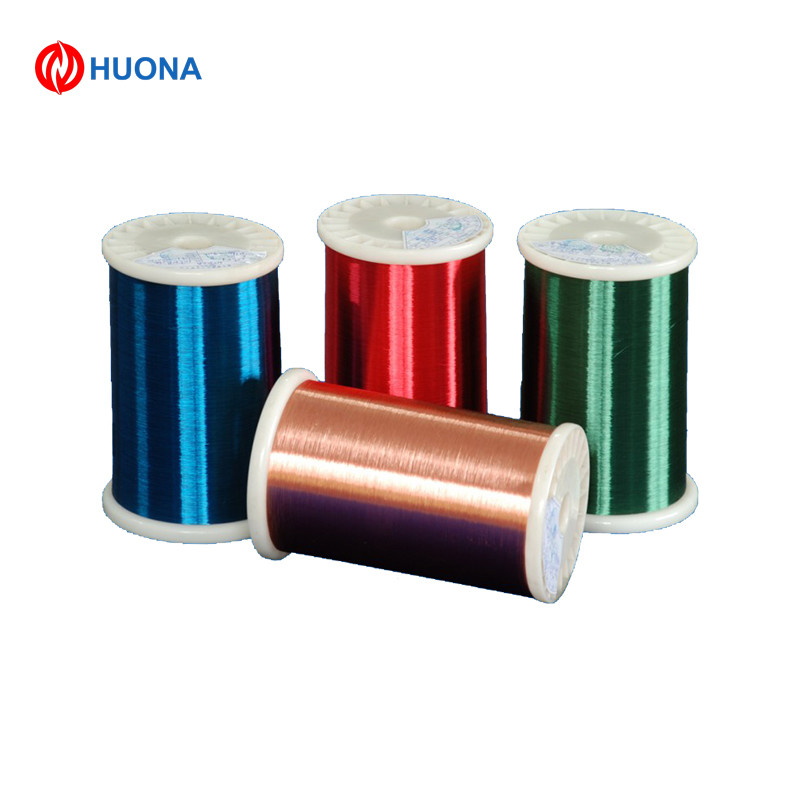

0.03mm Enamelled CuNi44 Wire Varnished Constantan Wire For Heating

Name: 003mm Enamelled CuNi44 Wire Varnished Constantan Wire For Heating
Brand: Huona
Price: 1 USD

China 0.03mm Enamelled CuNi44 Wire Varnished Constantan Wire For Heating wholesale

Brand Name : Huona

Model Number : CuNi44 Enamelled Wire

Certification : ISO 9001

Place of Origin : Shanghai

MOQ : 1spool

Price : Bargain

Payment Terms : L/C,T/T,Western Union,MoneyGram

Supply Ability : 50T/Spool

Delivery Time : 10~15 working days

Packaging Details : By Spool

Color : Nature,black,red,green,yellow

Solid Wire : CuNi44

Class Grade : 130℃,155℃,180℃,200℃,220℃

OEM : Available

Insulation Type : Enameling

Application : OEM

Contact Now

0.03mm Enamelled CuNi44 wire varnished Constantan wire for heating

Product Description

These enameled resistance wires have been broadly used for standard resistors,

High Low Voltage Resistor automobile parts, winding resistors, etc. using the insulation processing best suited for these applications,

taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

0.03mm Enamelled CuNi44 Wire Varnished Constantan Wire For Heating

Type of bare alloy wire

Copper-nickel alloy wire,	Pure copper, Constantan Wire,CuNi1,CuNi2,CuNi6~CuNi44 Resistance Wire,
Ni-Cr Alloy wire	Pure Nickel NiCr35/20,NiCr70/30,NiCr60/15, NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire	Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire	CuMn12Ni2,CuMn12Ni4,Manganin,NiMn2,
Any copper alloy and nickel alloy is available

Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.

Type of insulation

Insulation-enameled Name	Thermal Level℃ (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enameled wire	130	UEW	QA	MW75C
Polyester enameled wire	155	PEW	QZ	MW5C
Polyester-imide enameled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enameled wire	220	AIW	QXY	MW81C

Style of supply

Alloys Name	Type	Dimension
Enameled-W	Wire	D=0.018mm~3mm
Enameled-R	Ribbon	W=0.4~24	T=0.01~0.2mm

0.03mm Enamelled CuNi44 Wire Varnished Constantan Wire For Heating
